南方TD系列管道離心泵外觀升級了
日期：2019/3/19 10:57:33 | 人氣：1015 | TAG

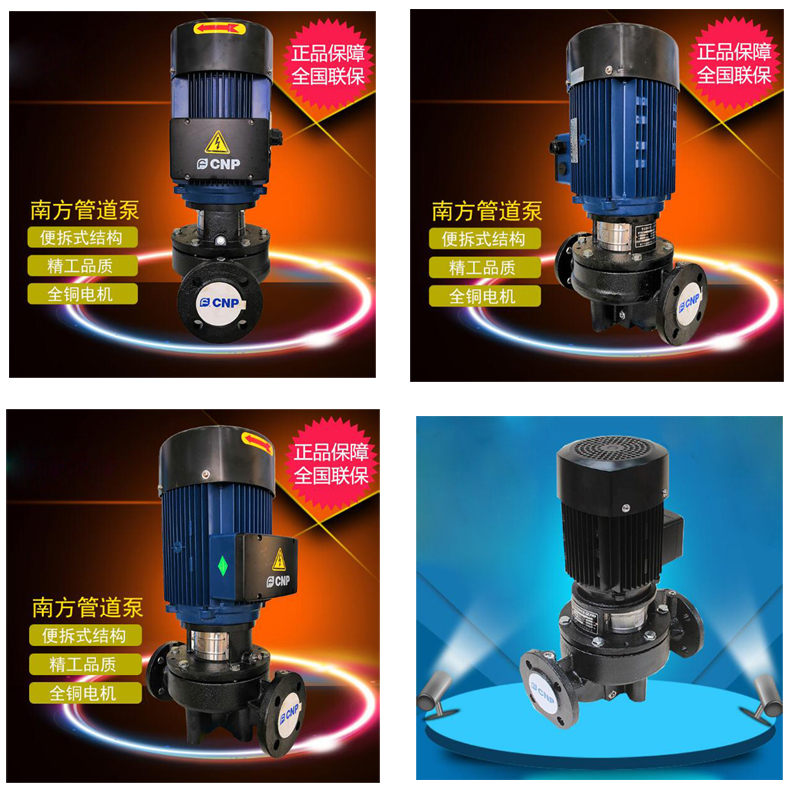

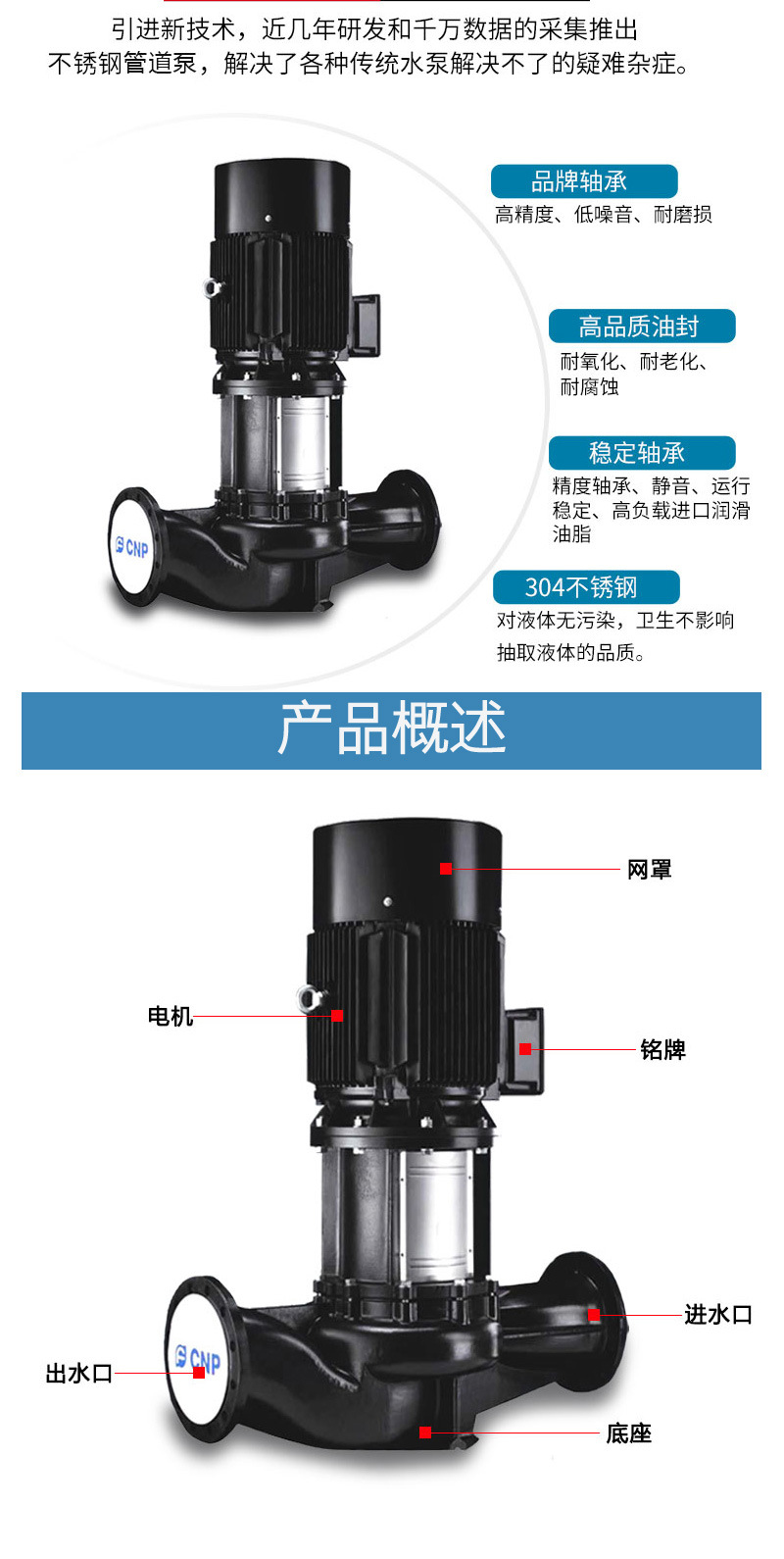

一晃2019年了，南方TD系列管道離心泵外觀升級了，現在的產品外觀是藍色的，節能環保的材質，TD單級立式管道循環泵，泵進出水口在泵底同一直線上，產品設計為頂部可拉出的拆裝形式，其可以在不影響管路系統的情況下對泵進行維修。管道離心泵的性能及優點：結構緊湊、維護方便、噪音低、可選配鑄鐵或不銹鋼葉輪。下面來講講最重要的型號問題：
泵型號
| 新型號 | 老款型號 | Q[m3/h] | H[m] | n[r/min] | 標準電機電壓[V] | |
| 1×220V | 3×380V | |||||
| P2[kW] | P2[kW] | |||||
| TD32-18G/2 | TD32-18/2 | 8 | 18 | 2900 | 1.1 | 1.1 |
| TD32-21G/2 | TD32-21/2 | 12.5 | 21 | 2900 | 1.5 | 1.5 |
| TD32-25G/2 | TD32-25/2 | 12.5 | 25 | 2900 | 2.2 | 2.2 |
| TD32-32G/2 | TD32-32/2 | 12.5 | 32 | 2900 | 3 | |
| TD32-38G/2 | TD32-38/2 | 12.5 | 38 | 2900 | 4 | |
| TD32-50G/2 | TD32-50/2 | 12.5 | 50 | 2900 | 5.5 | |
| TD40-16G/2 | TD40-16/2 | 12.5 | 16 | 2900 | 1.1 | 1.1 |
| TD40-20G/2 | TD40-20/2 | 12.5 | 20 | 2900 | 1.5 | 1.5 |
| TD40-18G/2 | TD40-18/2 | 20 | 18 | 2900 | 2.2 | 2.2 |
| TD40-25G/2 | TD40-25/2 | 20 | 25 | 2900 | 3 | |
| TD40-30G/2 | TD40-30/2 | 25 | 30 | 2900 | 4 | |
| TD40-36G/2 | TD40-36/2 | 25 | 36 | 2900 | 5.5 | |
| TD40-48G/2 | TD40-48/2 | 25 | 48 | 2900 | 7.5 | |
| TD50-32G/2 | TD50-32/2 | 12.5 | 32 | 2900 | 3 | |
| TD50-38G/2 | TD50-38/2 | 12.5 | 38 | 2900 | 4 | |
| TD50-48G/2 | TD50-48/2 | 12.5 | 48 | 2900 | 5.5 | |
| TD50-58G/2 | TD50-58/2 | 12.5 | 58 | 2900 | 7.5 | |
| TD50-80G/2 | TD50-80/2 | 12.5 | 80 | 2900 | 11 | |
| TD50-12G/2 | TD50-12/2 | 16 | 12 | 2900 | 1.1 | 1.1 |
| TD50-15G/2 | TD50-15/2 | 20 | 15 | 2900 | 1.5 | 1.5 |
| TD50-18G/2 | TD50-18/2 | 25 | 18 | 2900 | 2.2 | 2.2 |
| TD50-24G/2 | TD50-24/2 | 25 | 24 | 2900 | 3 | |
| TD50-28G/2 | TD50-28/2 | 30 | 28 | 2900 | 4 | |
| TD50-35G/2 | TD50-35/2 | 30 | 35 | 2900 | 5.5 | |
| TD50-40G/2 | TD50-40/2 | 35 | 40 | 2900 | 7.5 | |
| TD50-50G/2 | TD50-50/2 | 40 | 50 | 2900 | 11 | |
| TD50-60G/2 | TD50-60/2 | 50 | 60 | 2900 | 15 | |
| TD50-70G/2 | TD50-70/2 | 50 | 70 | 2900 | 18.5 | |
| TD50-81G/2 | TD50-81/2 | 50 | 81 | 2900 | 22 | |
| TD65-36G/2 | TD65-36/2 | 25 | 36 | 2900 | 5.5 | |
| TD65-48G/2 | TD65-48/2 | 25 | 48 | 2900 | 7.5 | |
| TD65-15G/2 | TD65-15/2 | 30 | 15 | 2900 | 2.2 | 2.2 |
| TD65-19G/2 | TD65-19/2 | 30 | 19 | 2900 | 3 | |
| TD65-22G/2 | TD65-22/2 | 40 | 22 | 2900 | 4 | |
| TD65-30G/2 | TD65-30/2 | 40 | 30 | 2900 | 5.5 | |
| TD65-34G/2 | TD65-34/2 | 50 | 34 | 2900 | 7.5 | |
| TD65-40G/2 | TD65-40/2 | 50 | 40 | 2900 | 11 | |
| TD65-50G/2 | TD65-50/2 | 50 | 50 | 2900 | 15 | |
| TD65-61G/2 | TD65-61/2 | 50 | 61 | 2900 | 18.5 | |
| TD65-67G/2 | TD65-67/2 | 50 | 67 | 2900 | 22 | |
| TD65-83G/2 | TD65-83/2 | 50 | 83 | 2900 | 30 | |
| TD80-13G/2 | TD80-13/2 | 50 | 13 | 2900 | 3 | |
| TD80-18G/2 | TD80-18/2 | 50 | 18 | 2900 | 4 | |
| TD80-22G/2 | TD80-22/2 | 50 | 22 | 2900 | 5.5 | |
| TD80-28G/2 | TD80-28/2 | 50 | 28 | 2900 | 7.5 | |
| TD80-40G/2 | TD80-40/2 | 50 | 40 | 2900 | 11 | |
| TD80-48G/2 | TD80-48/2 | 50 | 48 | 2900 | 15 | |
| TD80-30G/2 | TD80-30/2 | 80 | 30 | 2900 | 11 | |
| TD80-38G/2 | TD80-38/2 | 80 | 38 | 2900 | 15 | |
| TD80-47G/2 | TD80-47/2 | 80 | 47 | 2900 | 18.5 | |
| TD80-54G/2 | TD80-54/2 | 80 | 54 | 2900 | 22 | |
| TD80-67G/2 | TD80-67/2 | 80 | 67 | 2900 | 30 | |
| TD100-9G/2 | TD100-9/2 | 50 | 9 | 2900 | 2.2 | 2.2 |
| TD100-15G/2 | TD100-15/2 | 60 | 15 | 2900 | 4 | |
| TD100-17G/2 | TD100-17/2 | 80 | 17 | 2900 | 5.5 | |
| TD100-22G/2 | TD100-22/2 | 80 | 22 | 2900 | 7.5 | |
| TD100-27G/2 | TD100-27/2 | 100 | 27 | 2900 | 11 | |
| TD100-33G/2 | TD100-33/2 | 100 | 33 | 2900 | 15 | |
| TD100-40G/2 | TD100-40/2 | 100 | 40 | 2900 | 18.5 | |
| TD100-48G/2 | TD100-48/2 | 100 | 48 | 2900 | 22 | |
| TD100-52G/G | TD100-52/2 | 130 | 52 | 2900 | 30 | |
| TD125-11G/4 | TD125-11/4 | 120 | 11 | 1450 | 5.5 | |
| TD125-14G/4 | TD125-14/4 | 120 | 14 | 1450 | 7.5 | |
| TD125-18G/4 | TD125-18/4 | 160 | 18 | 1480 | 11 | |
| TD125-22G/4 | TD125-22/4 | 160 | 22 | 1480 | 15 | |
| TD125-28G/4 | TD125-28/4 | 160 | 28 | 1480 | 18.5 | |
| TD125-32G/4 | TD125-32/4 | 160 | 32 | 1480 | 22 | |
| TD125-40G/4 | TD125-40/4 | 160 | 40 | 1480 | 30 | |
| TD125-48G/4 | TD125-48/4 | 160 | 48 | 1480 | 37 | |
| TD150-12.5G/4 | TD150-12.5/4 | 200 | 12.5 | 1480 | 11 | |
| TD150-17G/4 | TD150-17/4 | 200 | 17 | 1480 | 15 | |
| TD150-21G/4 | TD150-21/4 | 200 | 21 | 1480 | 18.5 | |
| TD150-25G/4 | TD150-25/4 | 200 | 25 | 1480 | 22 | |
| TD150-33G/4 | TD150-33/4 | 200 | 33 | 1480 | 30 | |
| TD150-40G/4 | TD150-40/4 | 200 | 40 | 1480 | 37 | |
| TD150-50G/4 | TD150-50/4 | 200 | 50 | 1480 | 45 | |
| TD200-15G/4 | TD200-15/4 | 300 | 15 | 1480 | 18.5 | |
| TD200-18G/4 | TD200-18/4 | 300 | 18 | 1480 | 22 | |
| TD200-24G/4 | TD200-24/4 | 300 | 24 | 1480 | 30 | |
| TD200-30G/4 | TD200-30/4 | 300 | 30 | 1480 | 37 | |
| TD200-35G/4 | TD200-35/4 | 300 | 35 | 1480 | 45 | |
| TD200-44G/4 | TD200-44/4 | 300 | 44 | 1480 | 55 | |
| TD200-53G/4 | TD200-53/4 | 300 | 53 | 1480 | 75 | |
| TD200-12.5G/4 | TD200-12.5/4 | 400 | 12.5 | 1480 | 22 | |
| TD200-20G/4 | TD200-20/4 | 400 | 20 | 1480 | 30 | |
| TD200-23G/4 | TD200-23/4 | 400 | 23 | 1480 | 37 | |
| TD200-27G/4 | TD200-27/4 | 400 | 27 | 1480 | 45 | |
| TD200-32G/4 | TD200-32/4 | 400 | 32 | 1480 | 55 | |
| TD200-43G/4 | TD200-43/4 | 400 | 43 | 1480 | 75 | |
| TD200-50G/4 | TD200-50/4 | 400 | 50 | 1480 | 90 | |
| TD250-15G/4 | TD250-15/4 | 500 | 15 | 1480 | 30 | |
| TD250-18G/4 | TD250-18/4 | 500 | 18 | 1480 | 37 | |
| TD250-21G/4 | TD250-21/4 | 500 | 21 | 1480 | 45 | |
| TD250-27G/4 | TD250-27/4 | 500 | 27 | 1480 | 55 | |
| TD250-36G/4 | TD250-36/4 | 500 | 36 | 1480 | 75 | |
| TD250-44G/4 | TD250-44/4 | 500 | 44 | 1480 | 90 | |
| TD250-53G/4 | TD250-53/4 | 500 | 53 | 1480 | 110 | |
| TD250-12.5G/4 | TD250-12.5/4 | 630 | 12.5 | 1480 | 30 | |
| TD250-14G/4 | TD250-14/4 | 630 | 14 | 1480 | 37 | |
| TD250-17G/4 | TD250-17/4 | 630 | 17 | 1480 | 45 | |
| TD250-20G/4 | TD250-20/4 | 630 | 20 | 1480 | 55 | |
| TD250-26G/4 | TD250-26/4 | 630 | 26 | 1480 | 75 | |
| TD250-32G/4 | TD250-32/4 | 630 | 32 | 1480 | 90 | |
| TD250-40G/4 | TD250-40/4 | 630 | 40 | 1480 | 110 | |
| TD250-50G/4 | TD250-50/4 | 630 | 50 | 1480 | 132 | |
